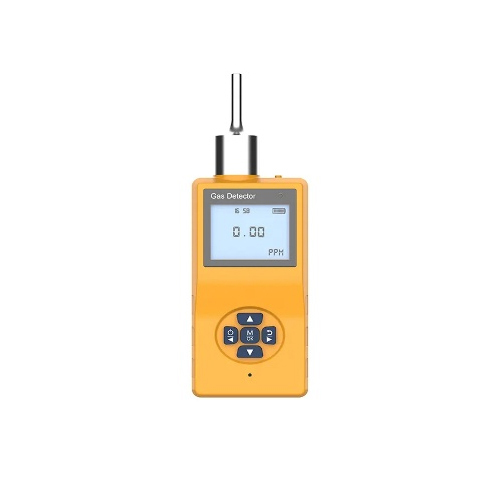

Portable Pump Type Gas Detector (MI-ES20C)

Name: Portable Pump Type Gas Detector (MI-ES20C)
Brand: Mukta Instruments
Price: 180000 INR
Availability: InStock

Price 180000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Portable Pump Type Gas Detector (MI-ES20C) Specification

Sensor
Electrochemical/Infrared

Test Range
PPM, PPB, PPH, VOL %, % LEL, mg/m3, ug/m3

Humidity
0-95% RH

Gas Pressure
Atmospheric

Test Material
Toxic/flammable gases

Response Time
<30 seconds

Operating Temperature
-20C to 50C

Number of Specimens
Single and Multi Gas

Power Supply
Rechargeable battery

Display
LCD

Type
Portable Pump Type Gas Detector

Use
Gas Detection

Operating Voltage
Battery powered

Shell Material
ABS/Plastic Body

Net Weight
Lightweight handheld

Pedestal Size
Handheld device

Port Size
Standard probe

Operating Mode
Pump suction

Alarm Indication
Sound and light

Ingress Protection
IP54

Sampling Method
Pump suction

Data Logging
Optional function

Portable Pump Type Gas Detector (MI-ES20C) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
2-3 Days

Portable Pump Type Gas Detector (MI-ES20C) About

Detected Gases: Combustible gas, toxic gas, VOC
Sensor: Catalytic combustion, infrared detection, electrochemistry, photoionization, PID, thermal conductivity
Detection Method: Pump suction type
Measurement Range: See appendix
Detection Principles: Catalytic combustion type, electrochemical type, PID (photoionization) type, thermal conductivity type, infrared NDIR type
Accuracy: 3% F.S.
Repeatability: 2%
Response Time: T90 < 30 s (varies depending on gas sensor type)
Alarm Mode: Sound and light alarm, two-color LED alarm indicator, voice alarm 75 dB @ 25 cm
Housing Material: Aluminum alloy housing
Pump System: Built-in high-performance pump with stable flow; can be switched on/off
User Interface: Navigation keys with user-friendly operation
Language: English
Data Storage: Supports up to 100,000 data groups
Measurement Features: Intelligent algorithm with multi-point calibration and temperature compensation for improved accuracy
Battery: 2600 mAh lithium battery (3.7 VDC nominal)
Operating Time: Continuous operation 20 hours (normal temperature electrochemical sensor 12 hours)
Charging Time: 6 hours
Measurement Units: VOL%, %LEL, mg/m, PPM, PPH, and other selectable units
Alarm System: Acousto-optic alarm with automatic warning when concentration exceeds set limits
Main Material: Aluminum alloy
Weight: Approximately 0.46 kg
Dimensions: 200.5 64.8 35.5 mm (L W H)
Temperature Range: -20C ~ +50C (customization available for special requirements)
Humidity Range: 10% ~ 95% RH (no condensation)
Pressure Range: 86 ~ 106 kPa

The illustrious MI-ES20C Portable Pump Type Gas Detector boasts a grandiose design for robust gas detection across industrial environments. Take advantage of its customizable alarm indications-sensational sound and light warnings-ensuring prompt hazard awareness. Engineered with an ABS/plastic body and IP54 ingress protection, this lightweight handheld device can withstand harsh conditions. With optional data logging, superior electrochemical/infrared sensors, and rapid response time (<30s), it efficiently detects toxic or flammable gases even in scarce atmospheric samples. This versatile, rechargeable detector supports both single and multi-gas testing in diverse formats.

Applications & Suitability: Where the MI-ES20C Excels

The MI-ES20C Portable Pump Type Gas Detector is suitable for use in oil refineries, chemical processing plants, confined spaces, and environmental monitoring. Sensationally adaptable, it is used by safety officers, field inspectors, and maintenance teams to detect toxic or flammable gases. Its customizable features make it effective for both single and multi-gas detection, ensuring safety in dynamic industrial sectors. These illustrious capabilities provide peace of mind in hazardous workplaces, safeguarding personnel and assets.

Packaging, Delivery & Export Markets: Information & Exchange

Each device is presented in securely sealed, resilient packaging, offering protection in transit. The exchange process for warranty or repair is seamless, reflecting our commitment to service. Delivery time typically ranges between 2-4 weeks, depending on availability and destination. The list price is competitive for such a customizable and grandiose instrument. Main export markets include Asia, the Middle East, Africa, and Europe, where trade and international standards charge high value to reliable safety equipment.

FAQ's of Portable Pump Type Gas Detector (MI-ES20C):

Q: How does the MI-ES20C Gas Detector indicate hazards?

A: The MI-ES20C gas detector uses both sound and light alarm indications to alert users of hazardous gas levels, ensuring immediate response in critical situations.

Q: What types of gases can this detector measure?

A: This portable detector can measure toxic and flammable gases in various units such as PPM, PPB, PPH, % VOL, % LEL, mg/m3, and g/m3, thanks to its electrochemical and infrared sensors.

Q: When should the data logging feature be used?

A: The optional data logging function is beneficial when record-keeping of gas exposure is required, such as for regulatory compliance, investigative analysis, or safety audits.

Q: Where is the MI-ES20C most effectively utilized?

A: It is most effective in industrial environments with potential gas hazards, including confined spaces, chemical plants, oil refineries, and environmental monitoring sites.

Q: What is the process for exchanging or servicing the device?

A: The exchange or servicing process involves contacting the manufacturer or supplier. Once the device is returned, it is inspected, serviced, or replaced according to warranty terms.

Q: How does the rechargeable battery enhance the usage experience?

A: The rechargeable battery allows for prolonged, uninterrupted operation, making the detector efficient and reliable for both field and site use without frequent charging interruptions.
