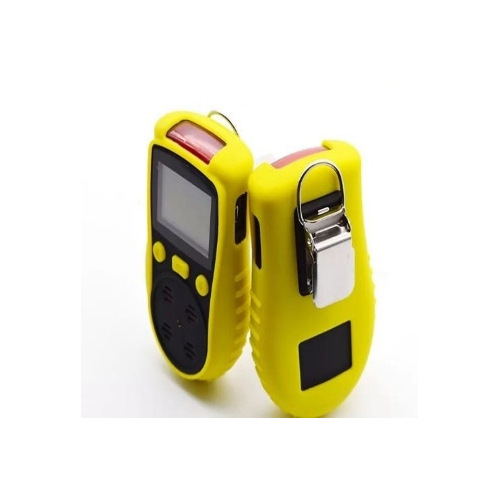

Portable Diffusion Type Gas Detector (MI-1200H-S)

Name: Portable Diffusion Type Gas Detector (MI-1200H-S)
Brand: Mukta Instruments
Price: 75000 INR
Availability: InStock

Price 75000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Portable Diffusion Type Gas Detector (MI-1200H-S) Specification

Sensor
Single and Multi Gas

Power Supply
Rechargeable battery

Response Time
Fast response

Accuracy
ppm, %VOL, %LEL, mg/m3

Display
LCD

Test Range
According to gas type

Use
Industrial gas safety

Shell Material
Durable plastic

Operating Mode
Diffusion sampling

Alarm Type
Vibration alarm

Data Logging
Optional logging

Compact Design
Pocket sized

Ingress Protection
IP65 rated

Color
Yellow casing

Clip Attachment
Rear belt clip

Sampling Method
Diffusion method

Portable Diffusion Type Gas Detector (MI-1200H-S) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
2-3 Days

About Portable Diffusion Type Gas Detector (MI-1200H-S)

Gas Detected: CO, H2S, O2, EX/CH4, N2, NH3, CL2, H2, CH2O, CO2, NO, NO2, NOX, SO2, ETO, PH3, HCL, HCN, LPG COCL2, CLD2, SiH4, F2, HF, HBr, H2O2, B2H6, AsH3, GeH4, N2H4, THT, Br2, C2H2, C2H4, CH3OH, C2H5OH, CH4S, C8H8, C4H6, VOC/TVOC, CH3Br, C6H6, C7H8, C8H10, CH, SF, O, CH, and CH etc
Detection Principle: Catalytic combustion, infrared detection, electrochemistry, photoionization, PID, thermal conductivity
Measure range: Specified according to application
Resolution: Specified according to application.
Precision: <1-5% F.S.
Unit: ppm, mg/m3, %VOL %LEL
Display: Monochrome dot matrix 128*128 LCD graphic display.
Backlight: Time of backlight is settable, when alarm the backlight will be auto on.
Data Logging100000 readings. Interval time ranges from 103600 seconds are settable. (Optional function)
Event logging: 100 event records can be checked on device
Language: English
Alarm type: sound, light, vibration.
Battery: 3.7V rechargeable lithium battery, with capacity of 2500mAh.
Working Time: 14h continuously (common 4 gases). 200h(without LEL sensor)
Charger: Travel charger. Charging time: 46h
Explosion-proof grade: Ex iaCT4
Protection grade IP65
Working temperature 1050
Working humidity 15-95RH
Housing Material ABS+ leather case
Dimension 131*83*35mmlength*width*height
Weight 240

Access extraordinary industrial gas safety with the Portable Diffusion Type Gas Detector (MI-1200H-S). Engineered for reliability, this premier device features a formidable vibration alarm, IP65 ingress protection, and a fast LCD display for swift results. Its compact, pocket-sized yellow casing and rear belt clip ensure portability. With optional data logging, single or multi-gas sensing, and accurate readings in ppm, %VOL, %LEL, and mg/m3, this detector stands out. Get It Now-safeguard your workspace with this top-tier, rechargeable, durable plastic gas detector from India's leading exporter, manufacturer, and supplier.

Versatile Application for Industrial Environments

The MI-1200H-S excels with its diffusion sampling method, ideal for quick gas detection across multiple application media such as ambient air, confined spaces, or hazardous zones. This portable detector is designed for diverse industrial places, including manufacturing plants, chemical storage areas, refineries, and on-site safety inspections. Simply clip it to your belt, access instant readings on the LCD display, and ensure a secure operational environment. Its application style enhances safety and convenience for professionals on the move.

Export Markets, Certifications, and Quick Dispatch for Samples

The Portable Diffusion Type Gas Detector (MI-1200H-S) is dispatched globally with speed, reaching leading export markets in Asia, Europe, Africa, and the Middle East. Certified to uphold rigorous safety and quality standards, it is trusted by a wide industrial clientele. Quotation and sample availability are quick-request a sample or initiate an order for fast dispatch. Benefit from an efficient process and responsive service, underscoring our commitment as a premier Indian exporter.

FAQ's of Portable Diffusion Type Gas Detector (MI-1200H-S):

Q: How does the MI-1200H-S gas detector operate in industrial settings?

A: The MI-1200H-S operates using a diffusion sampling method, detecting hazardous gases in real-time. Simply attach it via the rear belt clip, and it continuously monitors air quality, alerting users to dangerous gas levels with a formidable vibration alarm.

Q: What gases can this detector sense and how is the accuracy measured?

A: This portable detector accommodates single or multi-gas sensors, depending on the configuration. Accuracy is measured in ppm, %VOL, %LEL, and mg/m3, and test ranges vary according to the type of gas being monitored.

Q: When should I use the optional data logging feature?

A: Enable optional data logging when you require recorded data for compliance, reporting, or analysis. This feature is handy for maintaining safety audits and tracking long-term air quality in industrial environments.

Q: Where is the MI-1200H-S suitable for use?

A: It's suitable for confined spaces, industrial plants, refineries, chemical storage units, and on-site inspections-virtually any environment demanding industrial-grade gas safety monitoring.

Q: What is the process for obtaining a sample or requesting a quotation?

A: You can quickly request a sample or a detailed quotation by contacting the supplier directly. Samples are dispatched promptly, ensuring you can evaluate the product before making larger procurement decisions.

Q: What are the benefits of using this compact, portable gas detector?

A: The MI-1200H-S is pocket-sized for enhanced portability, features a durable yellow casing for visibility, and a rechargeable battery for continuous operation. Its fast response and vibration alarm deliver real-time safety assurance to industrial professionals.
